G9004 is the CPU emulator used as a local device for Motionnet system.
It can control various peripheral chips by performing like a local CPU. It can also communicate with an additional CPU installed at the local site.
●According to commands sent from the center device, G9004 generates CPU terminal signals including control signals, address/data bus signals.
●Connecting CPU terminal signals to high-performance devices enables remote control from the center device.
●Device status information such as interrupt and FIFO is cyclically transferred to the center device and CPU terminal signals are transiently transferred through data communication.
●Available as a local device or PCl-incorporated board for Motionnet system.
Features of G9004A
★Can communicate a maximum 256-byte data.
★Up to 64 units can be connected to a single line.
★Communication failure detection circuit ensures safe operation (watchdog timer built in)

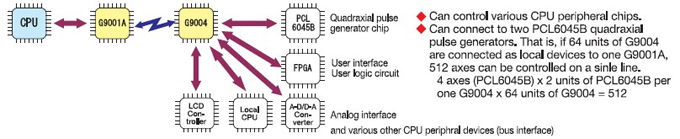

Connection Example
External Dimensions
If you want to know more details for G9004A Series, please click the "Details" button.
You can downlond the manual of PDF version.
